How to Read a Reflected Ceiling Plan: A Simple Guide by Letter Four

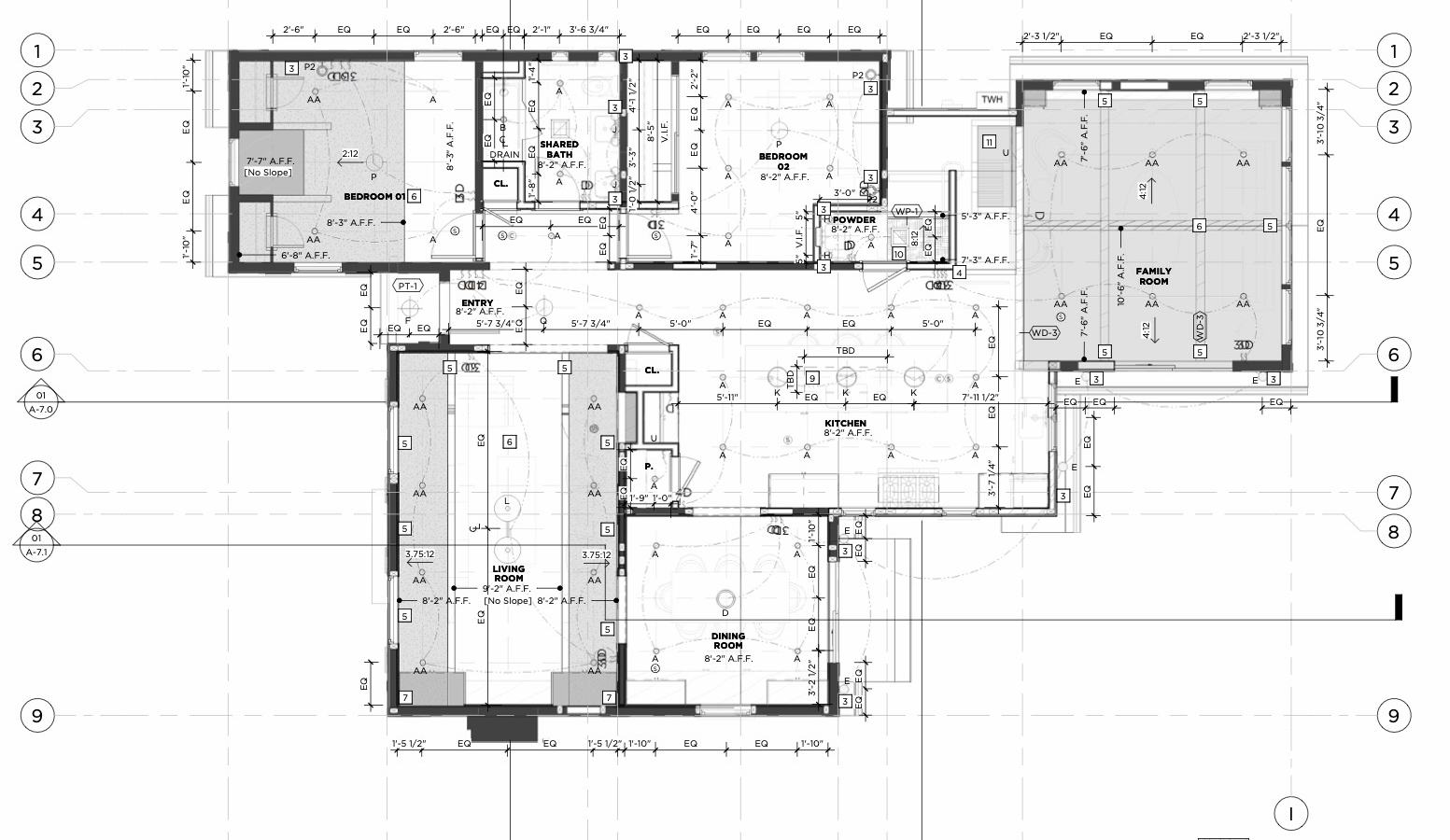

A reflected ceiling plan (RCP) is a drawing that shows which shows the items are located on the ceiling of a room or space. It is referred to as a reflected ceiling plan since it is drawn to display a view of the ceiling as if it was reflected onto a mirror on the floor.

Things You Should Know

• Pretend that you're hovering a few feet above the ceiling. Imagine that the ceiling below you is transparent.
• Use this perspective to read and understand the ceiling plan.
• Read the specs and additional details listed on the plan. Check the legend to decipher any symbols.

Steps

1. Pretend that you are hovering a couple of feet above the ceiling.

2. Imagine that the ceiling below you is transparent (see-through).

3. Visualize the ceiling over the floor below.

4. Read a reflected ceiling plan using this concept.

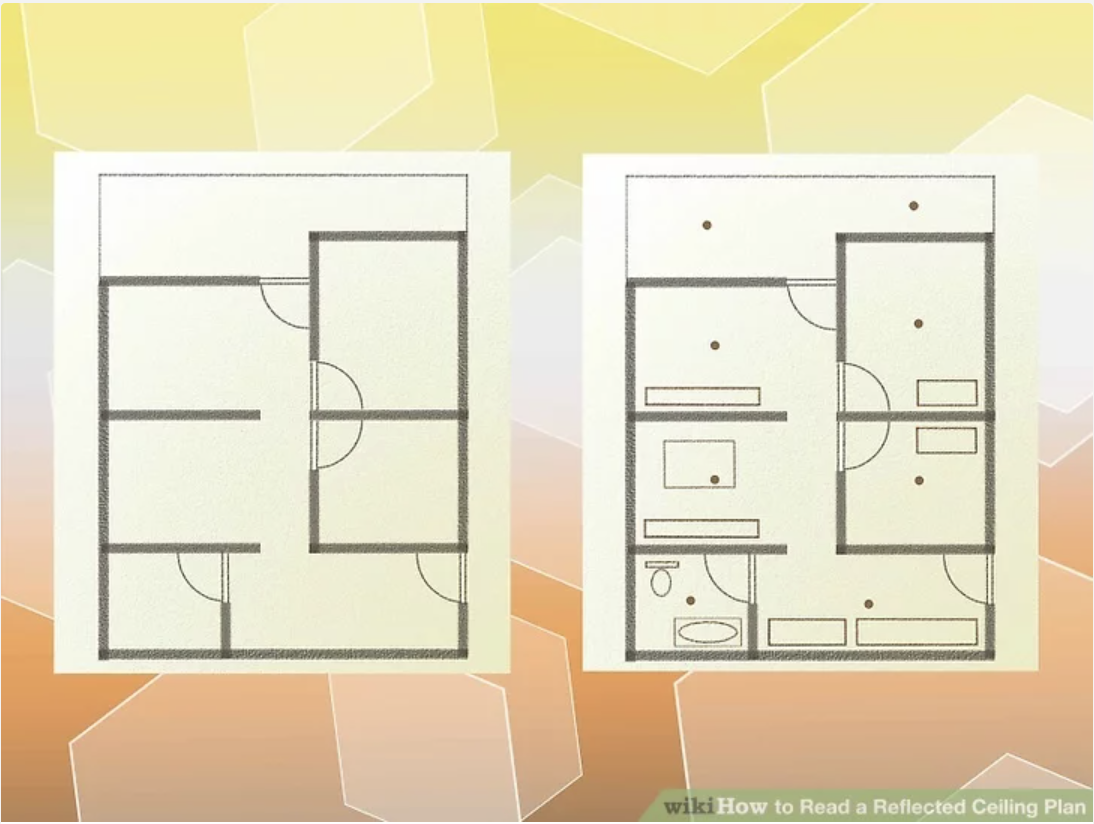

5. Notice how the reflected ceiling plan relates to the floor plan.

6. Observe the relationship of light fixtures to the furniture below.

• In some cases, the items below are not shown, in order to keep the RCP
  from becoming too confusing.
• When furniture, fixtures or the millwork below are shown,they are shown dotted.

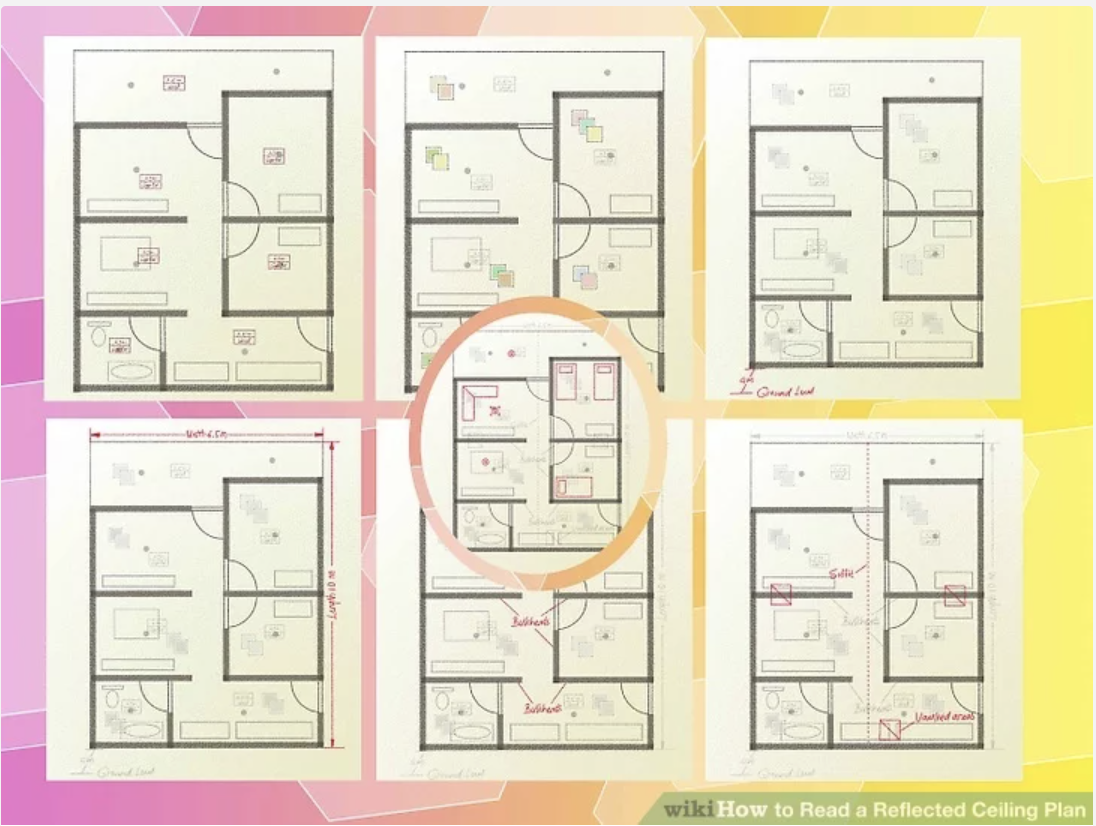

7. Understand the information. An RCP should contain the following:

• The construction of the ceiling (gypsum board., acoustical tile, etc)
• A specification and/or finish (paint, stucco, etc.) of the ceiling material
• The height of the ceiling above the finished floor (A.F.F.)
• Dimensions
• A legend explaining the symbols on the RCP
• An explanation of any ceiling features such as bulkheads, soffits, raised or vaulted areas, trim or decorative applications
• Section symbols to further explain the construction of any ceiling features

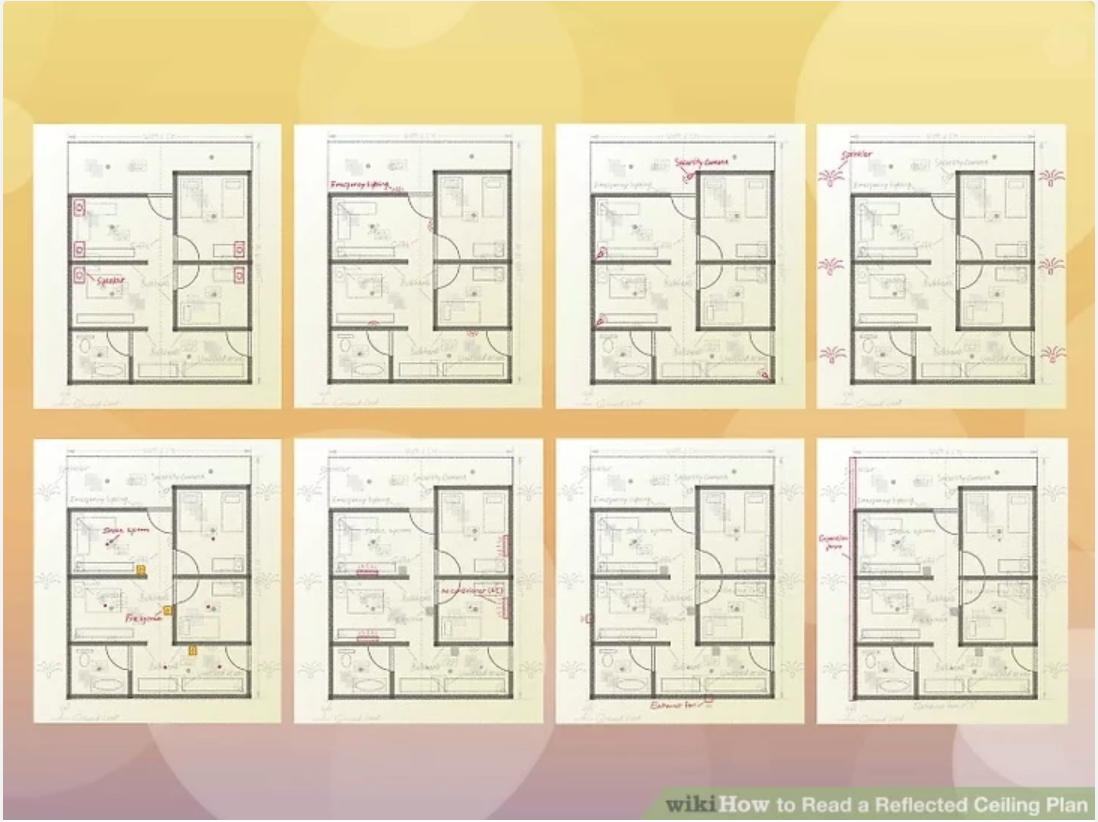

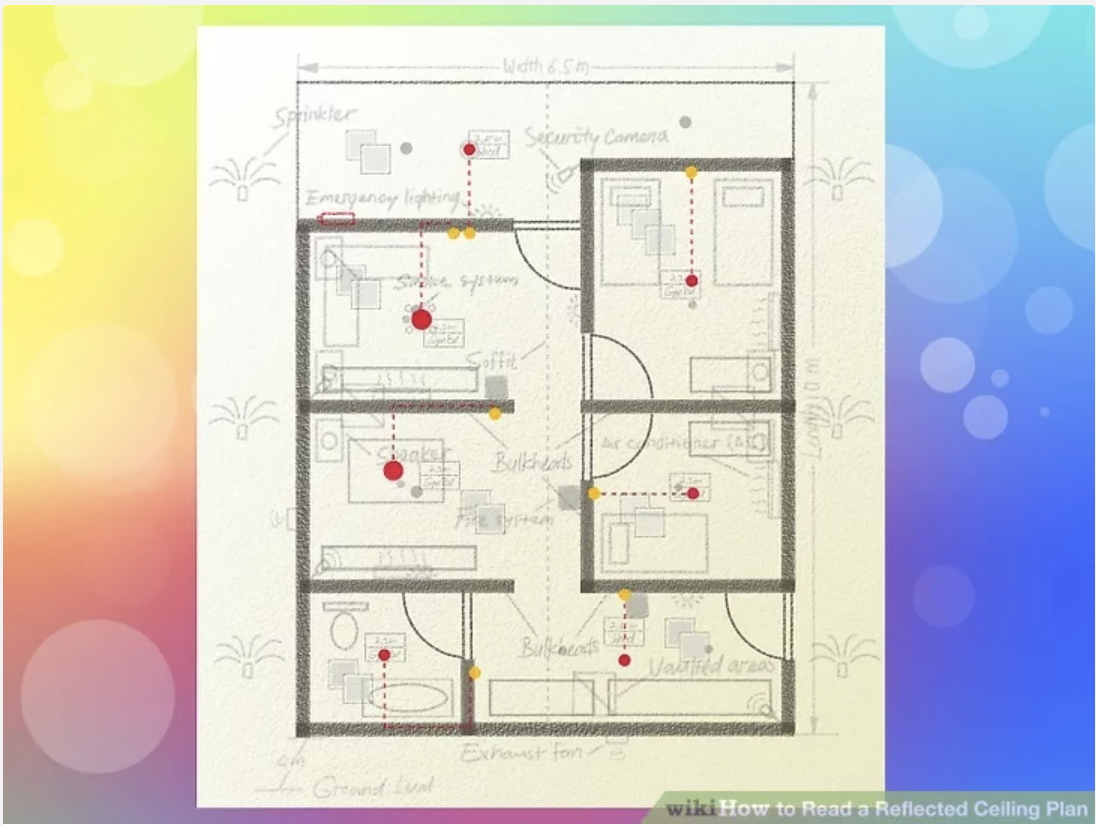

8. Look for special ceiling features on the RCP, such as:

• Speakers from a stereo or other communication device
• Emergency lighting, exit signs
• Security cameras or domes
• Sprinkler heads
• Smoke or fire alarm devices
• Return air grilles and supply air diffusers for the Heating, Ventilating, and Air Conditioning (HVAC) system
• Exhaust fans
• Seismic information and/ or details
• Expansion joint information and/ or details

9. Refer to the engineers electrical drawings for:

• Electrical wiring specifications
• Circuitry layout
• Connections to the electrical panel
• Location of switches

You can also check out this comprehensive guide on WikiHow: How to Read a Reflected Ceiling Plan. This resource will equip you with the necessary knowledge to make your ceiling planning process smooth and efficient.

Why Learning How to Read a Reflected Ceiling Plan Matters

At Letter Four, understanding how to read a reflected ceiling plan correctly is a core part of every project. This skill helps designers, builders, and clients visualize how lighting, vents, and ceiling fixtures come together to shape a space. It ensures that every design detail works in harmony with the overall layout.

In both design and construction, reflected ceiling plans guide clear communication among architects, engineers, and contractors. When everyone reads the same plan correctly, projects move forward smoothly and efficiently. It reduces errors, saves time, and keeps the design vision consistent from start to finish.

Learning how to read a reflected ceiling plan correctly also prevents costly mistakes—like misaligned lighting or conflicting fixtures. At Letter Four, this knowledge allows our team to deliver precise, functional, and beautiful spaces that reflect thoughtful coordination and strong attention to detail in every project.

Common Mistakes to Avoid

When reading a reflected ceiling plan, even small mistakes can cause major design problems later. At Letter Four, we’ve seen how tiny oversights can affect both the look and function of a space.

One of the most common mistakes is ignoring ceiling heights. When these measurements aren’t checked, lights, sprinklers, or fans can end up clashing. Always review height notes carefully to make sure every fixture fits properly and aligns with the design.

Another frequent error is misreading lighting symbols. Each symbol represents a specific type of fixture or feature. Confusing them can lead to misplaced lights or uneven lighting throughout the room. Before making any adjustments, take time to review the legend to ensure everything matches the plan.

Many people also forget to compare the reflected ceiling plan with the floor plan. This simple step keeps furniture, lighting, and ceiling elements coordinated. Paying attention to these details helps you avoid costly revisions and makes reading a reflected ceiling plan smoother, clearer, and more accurate.
